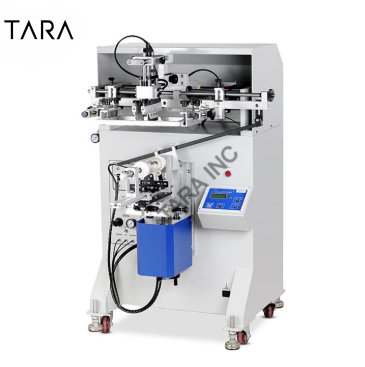

HA-3A Pneumatic Flat And Cylinder Screen Printing Machine

HOWELL HA series semi automatic bottle and container screen printing machine are well designed and versatile machine.

This flat and round screen printer can screen print on cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks,etc..

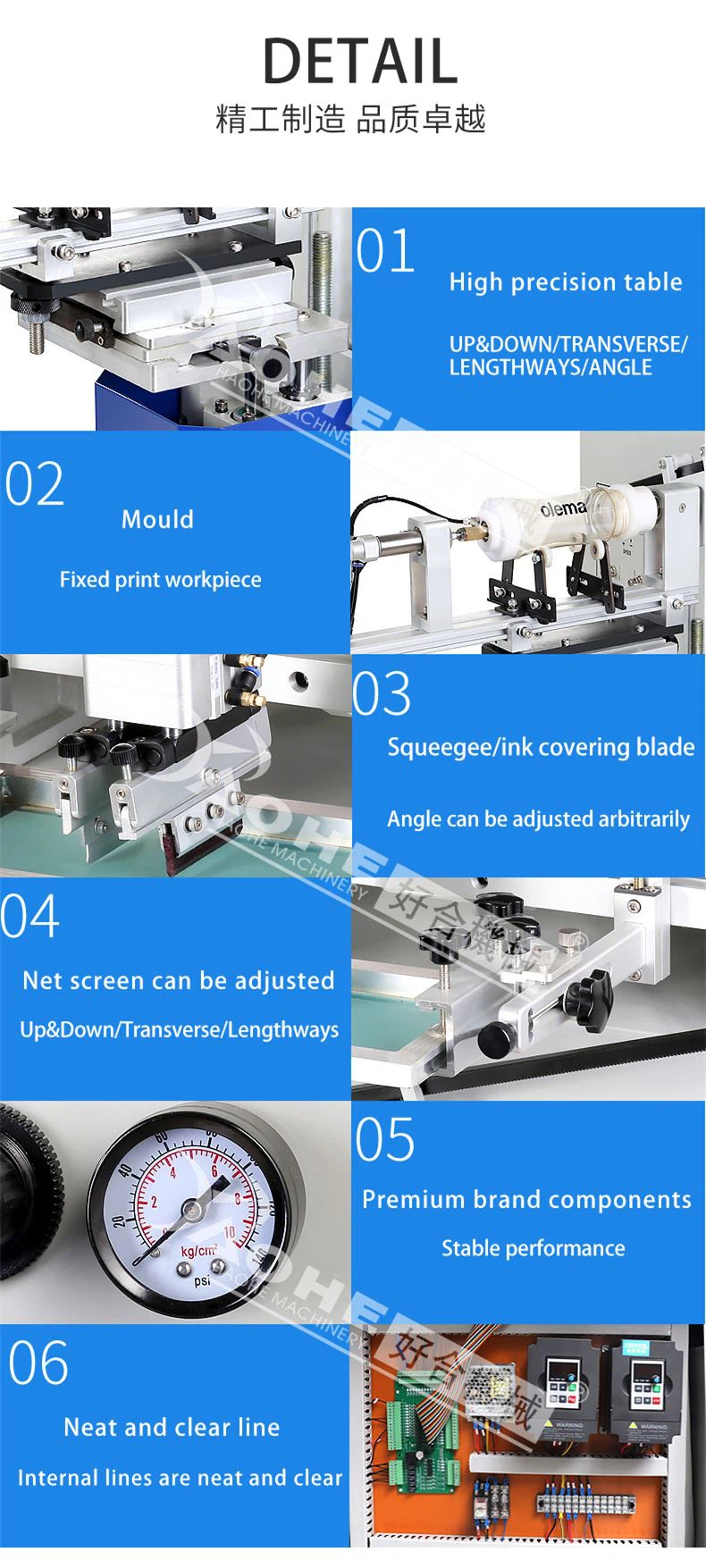

Machine Features:

Pneumatic controlled with shock absorbers;

Vertical part lift with height adjustment;

Print stroke controlled with rodless cylinder;

X/Y/R positioning ware-mounting table;

Linear ball bearings on hardened shafts;

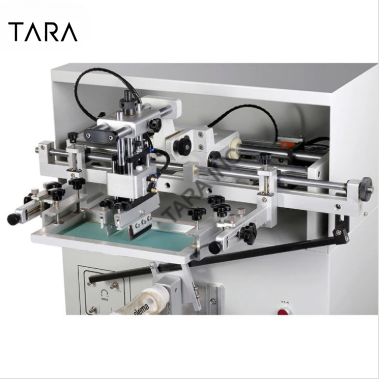

Squeegee tilt, skew, and height adjustable;

Screen frame angle & tilt adjustable;

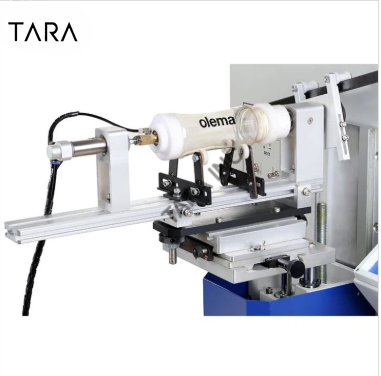

Synchronized bottle inflation system with regulator;

Regulated squeegee pressure with pressure gauge.

Machine Specification:

Model NO.: HA-3A

Drive System: Pneumatic

Maximum Print Area Round: 110mm Ø

Maximum Print Area Oval: 340mm Arc Length

Maximum Print Area Flat: 320x200 mm

Working Table Size: 400x250 mm

Printing Speed: 1200 pcs/hr

Air Requirement: 4 bar

Weight: 150 kg

Voltage: 110V/220V/230V 50/60Hz

Machine Dimension: 880x830x1350 mm

Buyer Information:

Before buying the screen printing machine, the buyer should think about the specific requirements for this screen printer, such as the size of the printing materials,the printing size.

On-site installation and debugging can be done in nearby areas. If express delivery or designated delivery is required, please contact the factory.

...
